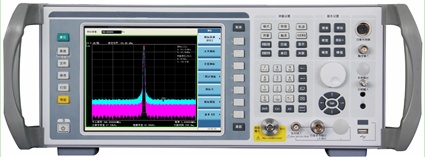

Spectrum analyzer TW4900

  • Spectrum analyzer
  • Spectrum analyzer
  • Spectrum analyzer
  • Spectrum analyzer
Item Code:TW4900 Features:Spectrum Analyzer has the advantages of broad bandwidth, high solution, high dynamic range, high precision, low phase noise and fast measurement speed. can provide the high performance services such as high sensitivity spectrum analysis, power analysis, analog demodulation test, multi-domain analysis, pulse parameter analysis, audio analysis, phase noise testing, millimeter wave frequency extension, noise figure testing and USB power meter. use the technology of modular frequency channel and all digital IF to form a high open testing platform. We can choose the different options to improve the testing performance of Spectrum Analyzer, and built test system or secondary development by a variety of digital and analog signal output interface of Spectrum Analyzer. has a wide range of applications as follows: aviation, aerospace, communication, radar and navigation.
  • Description

Product  Overview:

Spectrum Analyzer has the advantages of broad bandwidth, high solution, high dynamic range, high precision, low phase noise and fast measurement speed.  can provide the high performance services such as high sensitivity spectrum analysis, power analysis, analog demodulation test, multi-domain analysis, pulse parameter analysis, audio analysis, phase noise testing, millimeter wave frequency extension, noise figure testing and USB power meter.

 use the technology of modular frequency channel and all digital IF to form a high open testing platform. We can choose the different options to improve the testing performance of Spectrum Analyzer, and built test system or secondary development by a variety of digital and analog signal output interface of Spectrum Analyzer

 has a wide range of applications as follows: aviation, aerospace, communication, radar and navigation.

Main Features:
  ■ Broad frequency bandwidth range
  ■ 200MHz analysis bandwidth

  ■ Excellent testing performance

  ■ Full spectrum analysis

  ■ Multi-domain analysis and signal playback
  ■ Plentiful function option
  ■ Flexible analog and digital output interface
  ■ Convenient operating characteristics

Broad frequency bandwidth range

  ● 3Hz—50GHz frequency bandwidth range

  ● 9 kinds of Optional configuration of frequency bands

  ● low frequency (<4GHz) or full-band preamplifier

● Frequency extension up to 325GHz (options)

200MHz analysis bandwidth

  ● Flexible Bandwidth to choose from 10Hz to 200MHz

● 10MHz standard analysis bandwidth (40MHz/200MHz, options)

● 64M sample memory depth (256M, options)

● Seamless capture time can be up to a few hours from 1.28 seconds

Excellent testing performance

●The best measurement sensitivity: -152dBm/Hz

● Measurement sensitivity at 50Hz: -127dBm/Hz

  ● Phase noise: -115dBc/Hz  carrier 1GHz @ 10kHz offset

  ● All digital IF design

 ●The minimum non-zero span sweep time: 1ms

  ●Fastest scan speed: 90times/sec

  ●The low-frequency transducer frequency time: 50ms (frequency <4GHz)

  ●Trace can choose detection mode independently

●Network programmable

Full spectrum analysis

  ● Continuous scanning and FFT step scan

  ● Fastest sweep time of zero scan: 1μs

  ●Counting Resolution: 1mHz

  ●Scan Points: 101~30001

●Up to six tracks

  ●6 kinds of detection methods, three kinds of average type

●Support time gate measurement

●Occupied bandwidth, channel power, adjacent channel power testing

●Statistical power, burst power, harmonic distortion, third-order inter

modulation, spurious emission testing

Multi-domain analysis and signal playback

  ●Display multi-domain parameter of spectrum, instantaneous frequency / amplitude / phase, chromatograms

  ●Chromatogram display for the analysis of signal change with time

  ●Instantaneous parameter display for the analysis of pulse modulation

signal parameters.

●Seamless capture data storage up to 2GB

●Support CSV, DAT storage file format

●Support file playback signal analysis at different time.

●Support communication signal modulation recognition (Option)

Typical Applications:

● Comprehensive assessment of the performance of electronic systems:

Ithas a wide range of applications of comprehensive assessment of the performance of radar and communication. Providing high sensitivity, wide dynamic range, high precision and high efficiency solution for testing broadband signals.

● Transmitter and receiver testing and diagnosis:plentiful functions of Spectrum analysis, power measurement module, multi-domain analysis, phase noise testing for the transmitter and receiver testing and diagnosis.
