Radio Test Set TW9900

  • Radio Test Set
  • Radio Test Set
Item Code:TW9900 Features:Techwin Radio Test Set TW9900, which integrates multiple meters with the functions including RF transmitting and receiving analysis, audio source and analysis, can measure various performance of radios, interphones and audio equipment at the range of 2MHz~1GHz/2.7GHz, and test standing wave of communication cables and antennas. It is a comprehensive radio test set capable of overall functions at a small size. Featured with strong environment adaptability and rechargeable battery, the test set can be used for simple lab application, production and debugging of communication equipment, on-site installation, repair and maintenance in the sectors of civil communication, public security, military information technology construction, etc.
  • Description

Product Overview



Techwin Radio Test Set TW9900, which integrates multiple meters with the functions including RF transmitting and receiving analysis, audio source and analysis, can measure various performance of radios, interphones and audio equipment at the range of 2MHz~1GHz/2.7GHz, and test standing wave of communication cables and antennas. It is a comprehensive radio test set capable of overall functions at a small size.

Featured with strong environment adaptability and rechargeable battery, the test set can be used for simple lab application, production and debugging of communication equipment, on-site installation, repair and maintenance in the sectors of civil communication, public security, military information technology construction, etc.



           Main Characteristics



  • Handheld design, small size and light weight, easy for carry.



  • Powerful environment adaptability, two supply modes, convenient outdoor tests at anywhere and anytime.



  • Dual RF sources, superior spectrum purity, integrated solution of radio/interphone tests.



  • Design of universal spectrum analysis modules, easier for signal search and analysis.



  • USB and LAN interfaces, flexible remote control is available.



  • Simplified Chinese/English menus, friendly and convenient for user operation.



Small size, lightweight, on-site application can be easily accomplished



Implementing light plastic for shell, Techwin Radio Test Set TW9900 is the smallest and exquisite radio multimeter compared with other meters of the same performance. The built-in high-capacity rechargeable battery is easy for replacement. You can enjoy the performance of desktop equipment but at handheld convenience brought by the small size, large-capacity battery and multi-function carrying backpack. The test set is extremely suitable for on-site usage.



Super powerful capabilities of environmental adaption and dust-sand proof, handy for tests in sundry environments



Techwin Radio Test Set TW9900 applies the excellent design of low power consumption and heat radiation, which meets the third-class equipment standards regulated in GJB3947A, which are surpassed by the test set in several aspects in terms of the performance, such as usage in the outside temperature at -10℃~

+50℃. It can maintain the high performance no matter how extreme the temperature is. Caps are

used for protection of sensitive parts like connectors, which enables free operation.

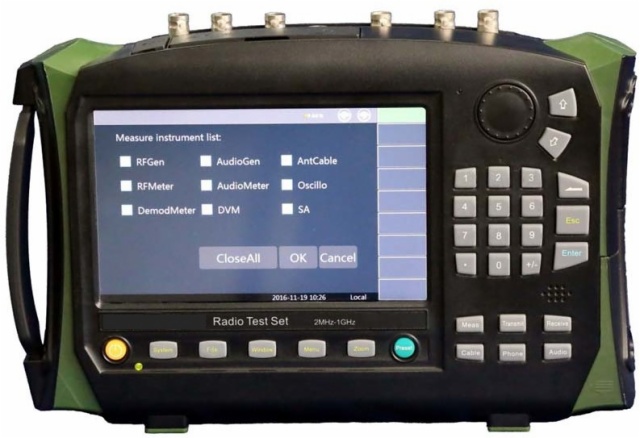

A colorful touch screen with back-light sensors



Techwin Radio Test Set TW9900 deploys a 7 inch colorful touch screen to follow the latest test demands and trends. One window supports simultaneous display of multiple meters in rolling. The windows can be zoomed as per your needs. Touch parameters to update parameter setting. The built-in back-light sensing can adjust display light intensity automatically according to environmental light, so that operation comfort is largely enhanced.



Complete test functions give you outstanding and comprehensive test results



Techwin Radio Test Set TW9900 integrates numerous meters containing RF source, audio source, cable tester, RF meter, audio meter, oscilloscope, demodulation meter, digital voltmeter, spectrum analyzer, etc., which can perform tests on over 20 parameters. As an engineers’ right-hand equipment, it can satisfy almost all test demands from measurements on universal radio transmitting and receiving devices.



           Flexible operation due to one-key integration/menu customization, provides you convenient test experience

Techwin Radio Test Set TW9900 is capable of one-key integration to meet various testing needs of customers. You can configure it freely to eliminate complicated setup steps in relatively fixed test parts or conditions. Instead, you can have a direct view on test results.



           The built-in diagnosis “doctor”, offers you more direct and clear test outcomes



Techwin Radio Test Set TW9900 sets up corresponding qualified test ranges against many test items based on application conditions. Once the test alarm function is on, the back-light color won’t change if the result fits in the range, the back-light turns to blue if the result fails the lower limit and turns to red if the result is higher than the upper limit. Users can get clear and direct views of existing test results.



           Chinese/English/Spanish operation menu, on-line test support and breakdown analysis



The default menu of Techwin Radio Test Set TW9900 is in Simplified Chinese. English version can also be set. Many shortcut keys lead you to the selection menu directly, which is simple for comprehension and operation. Without special training, users can master the test set through the rich functions of on-line support and trouble inquiries.

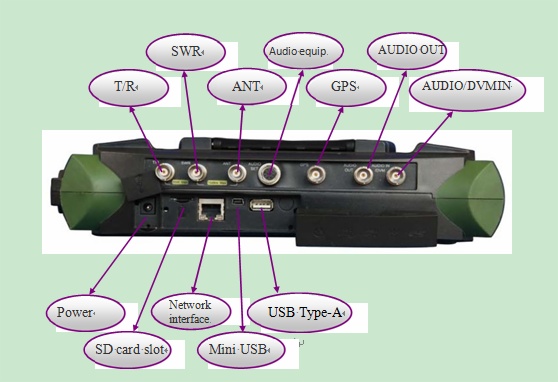

Manifold interfaces, handy for control



          Techwin Radio Test Set TW9900 has a SD card slot besides RF and audio signals testing interfaces. Micro SD            can extend the memory or copy internal data and documents. The interfaces available are LAN (local area                  network), Mini USB and USB Type-A. They can enable remote control over the whole equipment, data                          transmission and connection to SB peripheral devices, like USB storage devices, USB mouse, USB keyboards





           Main Functions



It offers fantastic solutions for performance and specification tests on equipment including radio, interphones and so on using the highly qualified RF source.



  • Integrates double RF sources and supplies a convenient integral test approach for evaluation of specifications covering inter-modulation of complete equipment, impedance, out-of-band suppression, etc..

Techwin Radio Test Set TW9900 owns two RF sources, 2MHz~1GHz/2.7GHz and 2MHz~400MHz, to respectively control output power in the modes of single output and combined output. Complexity and cost of tests can be greatly decreased when dual-source tests are required. Meanwhile, testing setup is facile.



  • The built-in standard modulation source enables FM/AM modulation.

Techwin Radio Test Set TW9900 RF source can input modulation signals from outside and an internal modulation source is also accessible, and is equipped with AM and FM required by analog communication. Certain noise output can also be added to the internal modulation signals, to simulate actual signals more vividly and detect equipment performance.



  • Effective RF signal analysis provides assessments over transmitter signals in several aspects.

Techwin Radio Test Set TW9900 RF analysis can carry out evaluation on transmission performance of your equipment in every aspect, such as monitoring and examination on transmission frequency error, RF power, signal receiving intensity, spectrum characteristics, etc.. RF signal measurement and analysis as well as spectrum monitoring are also available.



  • Accurate audio analysis, simple for overall analysis on LF signals

The complete analysis of Techwin Radio Test Set TW9900 on audio can accurately analyze audio frequency, voltage, SINAD, THD, etc.. The embedded DVM meter can measure signals containing DC component. We offer audio oscilloscope options for your direct observation and analysis on various signals under test.



  • Multiple cable specification testing functions, quickly locate breakdowns

The antenna feeder test of Techwin Radio Test Set TW9900 can examine performance of cable voltage-SW ratio, insertion loss, and return loss through measurement on SW ratio at SWR port. The ability of Distance-To-Fault (DTF) helps further isolate breakdowns during radio system repair.



Typical Applications



Out-field installation, debugging and maintenance of radio equipment



Highly integrated in design, Techwin Radio Test Set TW9900 intensively combines functions of several meters with the max. size of 295mm (W)×195mm (H)×70mm (D) and the total weight even lighter than 2.6kg. The rechargeable battery with large capacity is imbedded to give you a longer working duration. It is especially suitable for out-field installation, testing and maintenance of radio transmitting/receiving equipment. As a multimeter for RF measurement, the test set will surly become a necessity for radio engineers.



Examination on performance and mass production of radio stations/interphones



As the extensive application of radio communication, various military and civil stations and diversified communication tools, different test equipment is required for development and mass production, for instance, signal generators, spectrum analyzers, power meters, frequency meters, oscilloscopes and audio meters. A complete radio/interphone consists of a transmitter and a receiver. Users need to switch frequently between multiple devices to accomplish tests on whole performance and specifications, which consumes manpower, resources and a great amount of time.

Techwin Radio Test Set TW9900 gathers multifold meters for performance examination on various vehicle/commercial stations and wireless interphones. Test processes are simplified, which lowers cost and improves working efficiency. The built-in “Doctor” establishes corresponding qualified ranges against certain objectives under test; the back-light of data displayed will turn to different colors based on the limits set beforehand. The ability behaves a big advantage for mass production and routine maintenance of meters.



AM Sensitivity test of radio stations



Set up Techwin Radio Test Set TW9900 to generate RF AM signals and arrange the frequency together with receiving frequency, output frequency, and modulation frequency and modulation depth of the radio station under test as per specific requirement. Choose T/R port as the RF output port. In this case, the radio station can get low power RF signals of -125dBm. Connect the audio output port of the station to the audio input port of Techwin Radio Test Set TW9900. Enable the Audio Meter to observe SINAD of the output signals from the station. Adjust power of the RF output signals until SINAD of the audio signals under test gets close to the requirement. Following such procedure, you can easily test sensitivity of the radio station under test.



Technical Specifications



Double independent RF Signal Sources

Double RF sources (you can choose one signal source for independent output, or combine the double sources inside then output them)











Frequency characteristics



Option 001 (default)

Option 002





Frequency Range

2MHz~1000MHz (Source 1)



2MHz~400MHz (Source 2,ANT output)

2MHz~2700MHz (Source 1) 2MHz~400MHz (Source 2, ANT

Output)

Frequency

Resolution

1Hz

Precision

Identical frequency standard















Amplitude characteristics















Output Level Range





-5dBm~-55dBm (SWR,Source 1)

-5dBm~-65dBm (SWR,Source 1, 2MHz~2.2GHz)

-10dBm~-65dBm (SWR,Source 1,

2.2GHz~2.7GHz)





-5dBm~-100dBm (ANT,Source 1)

-5dBm~-100dBm (ANT,Source 1, 2MHz~1.8GHz)

-15dBm~-100dBm (ANT,Source 1,

1.8GHz~2.7GHz)





-50dBm~-125dBm (T/R,Source 1)

-50dBm~-120dBm (T/R,Source 1,

2MHz~2.2GHz)

-55dBm~-120dBm (T/R,Source 1,

2.2GHz~2.7GHz)

0dBm~-100dBm (ANT,Source 2)

-5dBm~-100dBm (ANT,Source 2)





Spectrum purity

Sideband          Phase Noise

≤-95dBc/Hz (Frequency offset 20kHz)

≤-90dBc/Hz (1GHz@20KHz)

≤-80dBc/Hz (2.7GHz@20KHz)

Harmonic Spurious

≤-30dBc





Internal AM characteristics

Frequency Range

30Hz~5kHz (20Hz~20kHz is available)

AM Range

0~100%

Modulation Accuracy

±(5%×modulation depth+2%)

(150Hz~5kHz modulation rate, 10%~90% modulation depth)















External AM characteristics





Audio Input

Switching Load

150Ω,600Ω,1kΩ,High Z

Input Level

0.05Vp~3Vp

Frequency Range

300Hz~5kHz



Micro phone Input

Level Range

20mVrms~350mVrms

Frequency Range

300Hz~3kHz

AM

Range

0~80%



Internal FM characteristics

Frequency Range

30Hz~5kHz(20Hz~20kHz is available)

Frequency Offset Range

Max. 100kHz

Precision

±5%(100kHz Frequency offset,150Hz~5kHz modulation rate )

















External FM characteristics







Audio Input

Switching

Load

150Ω,600Ω,1kΩ,High Z

Input

Level

0.05Vp~3Vp

Frequency Range

300Hz~5kHz

Gradient

Positive voltage generates positive Frequency offset







Micro phone Input

Level Range

20mVrms~350mVrms

Frequency Range

300Hz~3kHz

Frequency Offset

0Hz~80kHz

Gradient

Positive voltage generates positive Frequency offset



Double audio sources(Audio 1and Audio 2)



Frequency range

20Hz~20kHz

Frequency resolution

0.1Hz

Frequency precision

Frequency standard ±2Hz

Output level

20mVrms~1.57Vrms

Output level resolution

0.01Vrms

Output level precision

± (5%+5mV)

Harmonic distortion

<3% (1kHz,1Vrms)

Output current

<15mA

Output

Single-tone, dual-tone, noise, single-tone + noise



RF meter



RF Power Meter

(T/R broadband input RF power)

Measurement Range

10dBm~43dBm (0.01~20W)

Max. Input Level

At +25℃ and 20W/43dBm, continues for 10 min., or sends out alarm when overheat

Precision

±1dB(20~43dBm)(Built-in attenuator)

RF Frequency Error Meter



Capture Range

±200kHz

Resolution

1Hz

Accuracy

Time base ±2Hz

Intensity Meter Of Signals Received



Measurement Range

dBm

-110dBm~+43dBm





Available RF Level Range

T/R port

-50dBm~+43dBm



ANT port

Option 001

Option 002

-110dBm~-10dBm

-110dBm~-10dBm(2MHz~1GHz)

-100dBm~-10dBm(1GHz~2.7GHz)

Precision

±3dB



Demodulation meter



AM Modulation Depth Meter



Range

5%~100%

Resolution

1%

Precision

±5%,1kHzmodulaiton rate,30%~90% modulation, 3kHz LPF

FM Frequency offset meter



Frequency offset range

500Hz~100kHz

Resolution

1Hz

Precision

±5%,1kHz10kHz Frequency offset,150Hz1kHz modulation rate





Spectrum analyzeroptions



Frequency Range Sweep Width Reference Level Range

Resolution Bandwidth Range


Option 001 (Default) 2MHz~1GHz

10kHz~998MHz

-80dBm~+50dBm 10Hz~30kHz (1, 3, 10 steps)


Option 002 2MHz~2.7GHz

10kHz~2698MHz



Average Noise Level Displayed               -120dBm (typical value, 10kHz Frequency width)



Audio meter



Signal source under measurement

Audio input, demodulation signals

Audio Frequency



Resolution

0.1Hz

Precision

±1Hz

Audio voltage



Audio input level

20mVp~3Vp(Measurement range 1)

2Vp~30Vp(Measurement range 2)

Precision

±(5%´measurement value+5mV)(Measurement range 1)

Distortion(THD)



Display range

0~100%

Resolution

0.1%

Precision

±(5%´ measurement value +0.1%),(within 1%~20%)

SINAD



Display Range

0~40dB

Resolution

0.1dB

Precision

±1.5dB, (within 8dB~35dB)



DVM meter



Input Frequency Range

DC~20kHz

Input Impedance

1MΩ

Coupling

AC, DC

Input Level

20mVp~3Vp(Measurement range 1)

2Vp~30Vp(Measurement range 2)

Precision

±10%(Measurement range 1)



Audio oscilloscopeoption



Signal source

External audio, DVM input, demodulation signals

Sweep line

1

Marker

2



Trigger

Type

Auto, standard, single

Pulse edge

Rising edge, falling edge

Level can be triggered

-60V~+60V(setting depends on measurement range)

Horizontal

Range

0.2ms/lattice to 50ms/lattice, in the sequence of 1/2/5

Precision

±3%

Vertical

Range

10mV~20V/lattice,in the sequence of 1/2/5

Precision

±10%, within the whole range

Coupling

Audio input

AC





DVM input

AC, DC

Input Impedance

Audio input

150Ω, 600Ω, 1kΩ, high impedance

DVM input

1MΩ

Bandwidth

20kHz



Cable test



Frequency resolution

0.1MHz

Marker

3

Test Type

Measurement on standing-wave ratio (SWR), return loss (RL), cable loss (LOSS), Distance-To-Fault (DTF)





DTF Measurement

Range: 1m~100m Resolution: 0.01m

Speed rate: 0.00~1.00, auto choice or manual input based on cable types Measurement accuracy: ±10%



Internal time base



Aging Rate

1´10-6/year

Temperature Stability

1´10-6



Universal characteristics

  • Working characteristics

Operating Temperature

-10℃~+50℃

Storage Temperature

-40℃~+70℃

Size

295mm (W)×195mm (H)×70mm (D)

Weight

≤2.6kg

Power Consumption

≤25W(exclude battery recharging)







Type     of Power Input

AC, Standard Adapter

Input of the adapter:100~240V, DC of 50/60Hz





DC



Voltage:12V~18V(without the battery) 15V~18V(with the battery)

Current:4A(min.)



Built-In Battery(Standard)

Nominal voltage:10.8V Nominal capacity:≥7000mAh



  • Input and output ports

Description

Sign

Interface type

RF Input /Output Interface

ANT

BNC

T/R

BNC

RF Output Interface

SWR

BNC



Audio Output Interface

Audio Out

BNC

Audio/DVM Input Interface

Audio In/DVM

BNC

GPS Signal Input Interface

GPS

BNC

Audio Cassette Interface

Audio set

Special 10-core interface



Ordering information



Main Unit:Techwin Radio Test Set TW9900(2MHz~1GHz/2.7GHz)

Standard Package

No.

Description

Remarks

1

Power Cord Assembly

Standard tri-prong power cord



Power adapter(15.0V/4.0A)

2

Quick Start Guide

2 copies

3

CD

1 pc

4

USB Cable

1 pc

5

Built-In Rechargeable Lithium-Ion Battery

Included in the main unit

6

Car-Mounted Charger

1 pc

7

Certificate of Conformity

1 pc



Options

Serial No.

Description

Functions

Diagram

TW9900-001

1GHz Option

Frequency range: 2MHz~1GHz Defaulted option



TW9900-002

2.7GHz Option

Frequency range: 2MHz~2.7GHz



TW9900-003

English Option

Language multiplication(with keys, tags, and software)



TW9900-S01

Function of an oscilloscope





TW9900-S02

Function of a spectrum analyzer





TW9900-H01

User Manual in Simplified Chinese





TW9900-H02

User Manual in English





TW9900-H03

Programming Manual in Simplified Chinese





TW9900-H04

Programming Manual in English





TW9900-H05

20dB Attenuator -50W

To extend high power measurement (connector type: N (J,K))







TW9900-H06

20dB Attenuator -150W

To extend high power measurement (connector type: N (J,K))





TW9900-H07

20dB Attenuator -200W

To extend high power measurement (connector type: N (J,K))





TW9900-H08

Audio Cassette Option

For conversation to the outside, built-in speaker, microphone and cable.















TW9900-H09

20201Ae Type N Low-Cost Male Cal Kit

Tests and calibration of cables





TW9900-H10

20201Be Type N Low-Cost Female Cal Kit

Tests and calibration of cables





TW9900-H11

BNC/SMA Adapter

Interface extension

(BNC/SMA-JK,BNC/SMA-JJ: one

for each)





TW9900-H12

N/BNC Adapter

Interface extension

(N/BNC-JJ,N/BNC-KJ: one for each)





TW9900-H13

High Impedance Passive Oscilloscope Sensor

For tests of audio input /DVM





TW9900-H14

External GPS Antenna

GPS localization



TW9900-H15

BNC Cable (80cm)

Extension of testing port





TW9900-H16

Purple UTP Cable

Network interface control,2M, point-to-point cable





TW9900-H17

MicroSD Class4

Storage extension(capacity:8G)





TW9900-H18

Rechargeable Lithium-Ion Battery

Spare battery group





TW9900-H19

Power Adapter

Spare power adapter





TW9900-H20

Multifunction Bag

Protects the equipment. The harnesses fix the equipment at the neck and the waist, and free hands for equipment operation.









TW9900-H21

Backpack

Contain the main equipment, power adapter, power cord, testing cable, and various adapters; it is a backpack and handbag.





TW9900-H22

Safe transit case

To fix packing during transportation.







Other Products

Product Name:
Digital Phosphor Oscilloscope
Model:
TW4800
Description:
TW4800 Series Digital Phosphor Oscilloscope integrates functionalities of a digital oscilloscope, a logic analyzer, a function generator, a protocol analyzer and a digital voltmeter, has many functions including waveform autoset, automatic measurement of waveform parameter, cursor measurement, histograms measurement, arithmetic operation, FFT analysis, serial protocol trigger and analysis, limit and mask test, power measurement and analysis, waveform record and replay, mixed signal analysis, arbitrarily function generator and so on. To support Ethernet remote control, integrated development and application are easy and convenient.
Product Name:
Radio Communications Tester
Model:
TW8800
Description:
Techwin Radio Communications Tester TW8800, which is a multifunctional and portable model based on software radio architecture, integrates plentiful functions, like frequency-hopping signal generation and analysis, vector signal generation and demodulation analysis, analog modulation signal generation and demodulation analysis, audio signal generation and analysis, audio oscilloscope, automatic testing and so on. The tester is capable of major performance testes on transmit and receiving of radio communication equipment, measurement and analysis on feature parameters of RF, modulation, audio, and digit etc. Wide applications of the tester cover R&D, production, verification, maintenance and repair, and testing on radio communication equipment, including short-wave/ultra short-wave radio stations, data link systems, communication and surveillance satellites, radio relay equipment. Military mobile carriers with radio communication terminals like communication vehicles, surveillance vehicles, vessels and ships, as well as external field tests can use this tester conveniently.
Product Name:
Vector Network Analyzer
Model:
TW4600
Description:
Vector Network Analyzer has powerful measurement functions, which can complete vector network analysis in the field of wireless communications, cable TV, and automotive electronics, etc. It can be used for performance measurement of filter, amplifier, antenna, cable, and cable television sub connectors, etc. radio frequency components. It adopts Windows operating system; has error calibration and time domain functions; offers multiple display formats such as logarithmic amplitude, linear amplitude, standing-wave ratio (SWR), phase, group delay, Smith chart and poplar coordinates, etc.; provides multiple calibration types: including frequency response, single port, response isolation, enhanced response and full two-port calibrations, rapid SOLT and electrical calibration; has Windows operating platform and LAN function and can display multiple channels; is designed with USB interface, LAN interface, GPIB interface, VGA interface and color LCD display, all of which allow it to quickly and accurately measure the S-parameter amplitude, phase and group delay characteristics of DUT, with efficient and powerful error correction capability.
Product Name:
Vector signal generator
Model:
TW4400
Description:
TW4400 signal generators are vector signal generator products with high performances and newly proposed by Techwin. It has excellent vector modulation functions in the frequency range of 250kHz~44GHz. The baseband signal generator with the features of easy to set, flexible performance and multiple modulation formats, can edit and download the dedicated waveform and simulate variety of signals to fulfill the requirement of users. Vector Signal Generator TW4400 has broad internal and external vector modulation bandwidth to meet the demand for broadband signal simulation. It has excellent quality for both CW signal and vector modulation signal. It is an ideal LO source ,clock source and high performance complex simulation signal source, which are mainly used in the comprehensive evaluation of radar system performances, testing of high-performance receiver and testing of components’ parameters. It is applied to many fields, such as aviation, aerospace, radar, communication and navigation equipment.
Product Name:
5G Communication Tester
Model:
TW5000
Description:
5G NR signal analysis Support for 3GPP 5G NR downlink and uplink in-band measurements, EVM, frequency and power measurements for different channels and signals, all 5G signal bandwidth analysis measurements from 5MHz to 80 MHz, and different modulation formats from QPSK to 256QAM. Support 5G NR measurements EVM Constellation diagram I/Q bias in affine function Gain imbalance Center frequency error CCDF Assign a summary list Mean value of multiple measurements
Product Name:
Portable Spectrum Analyzer
Model:
TW4950
Description:
Techwin TW4950 series spectrum analyzer possesses many advantages: wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance index, it has advantages of excellent displayed average noise level, low phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power, tune & listen, emission mask, and carrier-to-noise ratio etc.. Techwin TW4950 adopts the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. It is handheld, compact and light, with flexible power supply, which is very suitable for field work. Techwin TW4950 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance
Product Name:
Spectrum analyzer
Model:
TW4900
Description:
Spectrum Analyzer has the advantages of broad bandwidth, high solution, high dynamic range, high precision, low phase noise and fast measurement speed. can provide the high performance services such as high sensitivity spectrum analysis, power analysis, analog demodulation test, multi-domain analysis, pulse parameter analysis, audio analysis, phase noise testing, millimeter wave frequency extension, noise figure testing and USB power meter. use the technology of modular frequency channel and all digital IF to form a high open testing platform. We can choose the different options to improve the testing performance of Spectrum Analyzer, and built test system or secondary development by a variety of digital and analog signal output interface of Spectrum Analyzer. has a wide range of applications as follows: aviation, aerospace, communication, radar and navigation.
Product Name:
Techwin Series New Optical Spectrum Analyzer
Model:
TW3900
Description:
The Optical Spectrum Analyzer TW3900, is a high performance spectrum analyzer, is developed through adopting the global advanced technologies Passive Component Test Application such as double-pass grating monochromator, high resolution direct drive diffraction grating, optical cuneiform delay polarization elimination and electronic digital filter. Having reached the advanced level of its global counterpart on the whole, the analyzer is used in the test of basic components such as LED, LD, SLD, DFB-LD, EDFA, optical fiber, optical fiber grating, optical filter, optical magnifier, WDM, and related systems.
more
