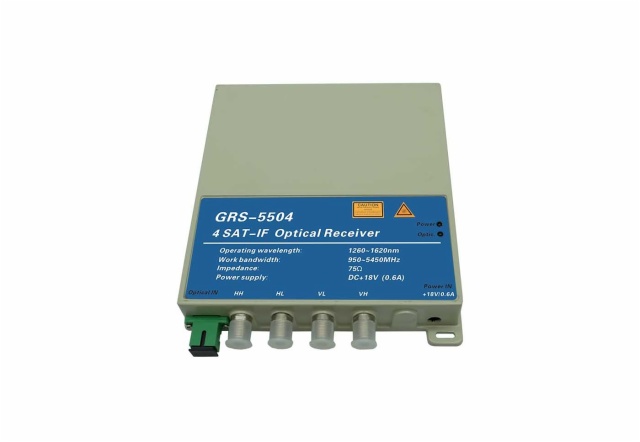

4 SAT-IF Optical Receiver GRS-5504 (950~5450MHz)

  • 4 SAT-IF Optical Receiver
  • 4 SAT-IF Optical Receiver
4 SAT-IF Optical Receiver
4 SAT-IF Optical Receiver
Item Code:GRS-5504 (950~5450MHz) Features:GRS-5504, a kind of 4-band SAT -IF O/E converter, which makes the superposed 4 ways SAT-IF signals in the band 950~5450MHz that transmitted by optic signal cleavage overlay and revert to standard VH,VL, HH, HL 4 ways SAT IF signal (SAT-IF) to output. It can connect 4 * N satellite multi-channel switch, and then serve for multi-users. GRS-5504/WD, GRS-5504/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH GRS-5504 the forepart of the satellite antenna adopt satellite channel overlay LNB, such as TOL32, TWL01.
  • Description

Product description



GRS-5504, a kind of 4-band SAT -IF O/E converter, which makes the superposed 4 ways SAT-IF signals in the band 950~5450MHz that transmitted by optic signal cleavage overlay and revert to standard VH,VL, HH, HL 4 ways SAT IF signal (SAT-IF) to output. It can connect 4 * N satellite multi-channel switch, and then serve for multi-users.

GRS-5504/WD, GRS-5504/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH

GRS-5504 the forepart of the satellite antenna adopt satellite channel overlay LNB, such as TOL32, TWL01.



Product features

▶Adopt one fiber to transmit 4 ways polarization SAT-IF signal well

▶GRS-5504 (Can connect 4*N multi-switch)

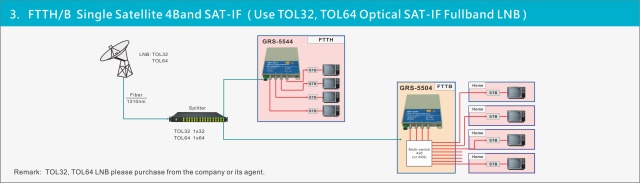

Main application

▶FTTH for DBS

▶Triple-play Overlay DVB-S

▶4 SAT - IF overlay/ cleavage overlay optical fiber links



Technical index

Performance

Index

Supplement

Min.

Typ.

Max.

Optical feature

CATV work wavelength

(nm)

1260



1620

GRS-5504

1540



1563

GRS-5504/WF, GRS-5504/WD

Pass wavelength

(nm)

1310, 1490

GRS-5504/WD

Channel isolation

(dB)

40







Responsibility

(A/W)

0.85





1310nm

0.9





1550nm

Receiver power

(dBm)

-15







Optical return loss

(dB)

40

45



FC/PC, SC/PC

55

60



FC/APC, SC/APC

Optical fiber connector



SC/APC

Optional FC/APC, SC/PC, FC/PC

Frequency feature

Reception frequency range

4 SAT-IF Converted

(MHz)

950



5450



VL Converted

950



1950



VH Converted

1950



3000



HL Converted

3300



4400



HH Converted

4400



5450



Frequency range

Output

VL

(MHz)

950



1950



VH

1100



2150



HL

950



1950



HH

1100



2150



Gain ripple across band

(dB)

-3.0



+3.0



Gain ripple across 40MHz

(dB)

-0.5



+0.5



Channel isolation

(dB)



30





In band spurious power

(dB)

-25







Out band spurious power

(dB)





-60



Gain range

(dB)

-1.0



36



Output level

(dBm)

-65



-25



Integrated phase noise

(dB)



4.0



1KHz~13KHz

OIP3

(dB)

+10







Output return loss

(dB)



10





Output impedance

(Ω)



75





RF number of connector output





4





RF connector



F-Female



General feature

Power supply (DC)

(V)



+18





Power consume

(mA)





300



External power supply input voltage

(V)

90



265



Operating temp.

(℃)

-30



+60



Storage temp.

(℃)

-40



+70



Size

(mm)

143 ×167×27

(W)x(D)x(H)
