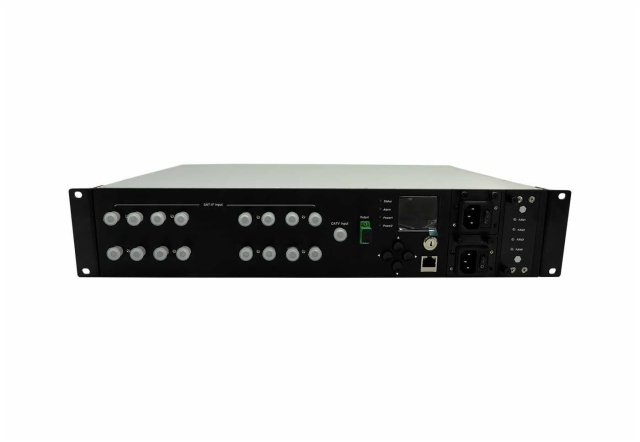

4-Band SAT-TV & CATV Direct Modulated Optical Transmitter GDS-6816 (47~862MHz & 950~6000MHz)

  • 4-Band SAT-TV & CATV Direct Modulated Optical Transmitter
  • 4-Band SAT-TV & CATV Direct Modulated Optical Transmitter
Item Code:GDS-6816 (47~862MHz & 950~6000MHz) Features:GDS-6816 series micro-wave Direct Modulated Optical Transmitter, the working broadband is 47~862MHz & 950~6000MHz. By internal frequency overlay, can transmit 4 SAT-IF, 4 roads sat TV signals and CATV signal of 47~862MHz with high quality by one fiber. It can supply high quality of satellite live TV service that come from maximum 4 satellites & CATV service for many users by FTTH, FTTB. GDS-6816 working wavelength is optional 1310nm or 1550nm. Choose 1550nm working wavelength can use EDFA & EYDFA to realize large area coverage. It is compatible with any FTTx
  • Description

Product description



GDS-6816 series micro-wave Direct Modulated Optical Transmitter, the working broadband is 47~862MHz & 950~6000MHz. By internal frequency overlay, can transmit 4 SAT-IF, 4 roads sat TV signals and CATV signal of 47~862MHz with high quality by one fiber.

It can supply high quality of satellite live TV service that come from maximum 4 satellites & CATV service for many users by FTTH, FTTB.

GDS-6816 working wavelength is optional 1310nm or 1550nm. Choose 1550nm working wavelength can use EDFA & EYDFA to realize large area coverage. It is compatible with any FTTx



PON technology. Realize multi-way satellite TV, CATV TV and internet integration of three networks.

GDS-6816 can choose 1550nm ITU-T standard wavelength to realize DWDM system application, can transmit 8 SAT-TV, 12 SAT-TV or 16 SAT-TV by one fiber.

SAT-IF input signal of GDS-6800 can come from 4 different satellites, and also can come from one satellite’s 4SAT-IF signal. If adopt one satellite’s 4 SAT-IF, can adopt Quattro LNB 4 SAI-IF output tuner, such as LNB-2204.

GDS-6816 adopts high linearity broadband and microwave direct Modulated DFB laser. Excellent laser APC, ATC control, perfect SNMP, RS232 interface. High performance, high flexibility, high reliability and excellent performance price ratio. It is the ideal choice for subscribers.

Product features

▶47~862MHz & 950~6000MHz RF working bandwidth

▶Transmit CATV signal& 4 SAT-IF overlay signal by one fiber at same time

▶1550nm Can use EDFA,YEDFA, can compatible with any FTTx PON

▶1550nm can select ITU-T standard wavelength, suitable for DWDM systems applications

▶4 SAT-IF input interfaces, all can supply power to LNB, all with +18V or+13V power switching, can realize the choice of horizontal and vertical polarization

▶4 SAT-IF input interfaces, the 2 interfaces are High Band(22KHz), another 2 interfaces are Low Band(0Hz)

▶High linear broadband micro-wave (microwave) direct modulated DFB Laser

Main application

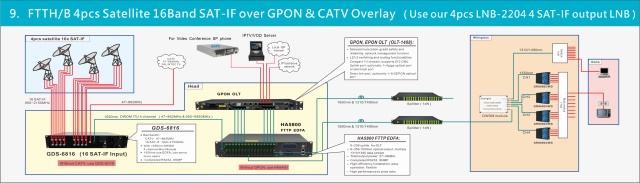

▶FTTH, FTTB(CATV & 4 SAT-TV)

▶Triple-play(CATV, 4 SAT-TV & Intranet)



▶Laser APC,ATC

▶Telecommunication-grade security and reliability and network management

▶SNMP support remote management and control

▶Excellent performance price ratio in this area






Technical index

Performance

Index

Supplement

Min.

Typ.

Max.

Optical feature

Working wavelength

(nm)

1300

1310

1320

13

1547



1563

CR

1528



1543

CB

1528.77



1563.86

XX (ITU standard wavelength)

Laser type



DFB



Laser grade



1M



Side mode suppression ratio

(dB)

35

45





Equivalent noise intensity

(dB/Hz)

155







Output optical power

(dBm)

2



10



SBS

(dBm)

18





1550nm, 25KM Fiber

Return loss

(dB)

40

45



FC/PC, SC/PC

55

60



FC/APC, SC/APC

Optical fiber connector



SC/APC

Optional FC/APC, SC/PC, FC/PC

Frequency feature

Frequency

IF input

VL

(MHz)

950



1950



VH

1100



2150



HL

950



1950



HH

1100



2150



4 SAT-IF superposition working frequency range

(MHz)

950



6000



In-band gain flatness

(dB)

-2.0



+2.0



40MHz gain flatness

(dB)

-0.5



+0.5



IM2

(dB)

40





2 tone measurement,

OMI=20% per carrier

IM3

(dB)

40





Input level

(dBm)

-60



-22



Input impedance

(Ω)



75





RF return loss

(dB)

8







RF connector type



F-Female



The number of SAT-IF input connector





16





CATV (RF) feature

Frequency Workig

CATV

(MHz)

47



862

Digital or Analog TV

DAB

213



854



DTT

470



854



FM

88



108



Input level

(dBmV)

15



28



Flatness

(dB)

-1



+1

47~862MHz

Return loss

(dB)

14







Input impedance





75





Connector type



F-Female



Link feature

Test channel



PAD-D/60CH



CNR

(dB)

51





-1dBm receiver

CTB

1310nm

(dB)





-65



1550nm

(dB)





-63



CSO

1310nm

(dB)





-60



1550nm

(dB)





-57



General feature

SNMP interface



RJ45



Communication interface



RS232



Power supply

AC

(V)

90

220

265



DC

-30

-48

-72



Power consume

(W)





25



Work temp.

(℃)

-5



+65



Storage temp.

(℃)

-40



+85



Work relative humidity

(%)

5



95



Size

(“)

19 ×13×3.5

(W) x(D)x(H)








Model explanation
