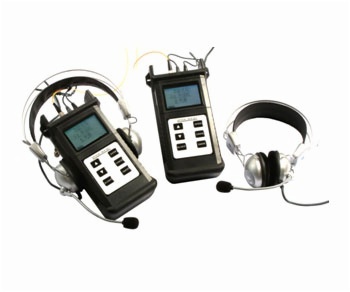

Optical Talk Set TW4103

Item Code:TW4103 Features:Optical Talk Set TW4103 is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The TW4103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance
  • Description

Optical Talk Set TW4103
is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The TW4103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.

Features

  • Full-duplex digital communication with high quality conversation connection and low background noise
  • Together with Optical Clip-on Coupler, enables on line communications available
  • Combining functions of both a digital optical phone call and a stabilized light source.
  • Large LCD display with backlight
  • Low battery power indication

Applications

Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

Specifications

 Type

TW4103



Wavelength(nm)

1310/1550



Emitter Type

FP-LD



Transmission Distance

≥80km



Dynamic Range

40dB



Output Power

-5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation



Output Stablity

±0.1dB/±0.25dB(1/8hrs) CW



Power Supply

Rechargeable Battery + Power Supply Adaptor



Battery Operating Time

5 hours



Optical Connector

FC/PC



Operating Temperatrue(℃)

-10 ~ +60



Storage Temperatrue(℃)

-25 ~ +70



Dimension(mm)

215X115X55



Weight(g)

520



Remark: Techwin also provides Fiber Optic Clip-on Coupler device according to customers needs.



MODEL

INCLUDES

TW4103

TW4103 Optical Talk Set(pair), Protective Rubber Boot, Headset, Rechargeable battery, Power Supply Adaptor, Instruction Manul, Contton Tampon and soft carrying case
