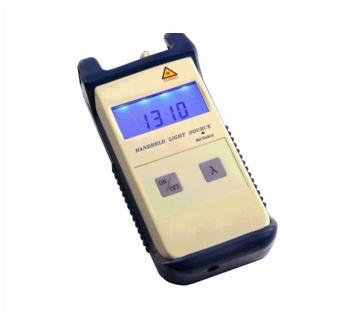

Laser Source TW3110
is the most rugged small size instrument in the industry. It integrates super small size and strong function in one unit. With 3 pieces of 1.5V alkaline batteries, it can work continuously for more than 40 hours. The total weight is only 110g. Together with the TW3205 Mini optical power meter, it provides an excellent solution for fiber optic network and for field work.
Features
- High stability of the output power
- Economic type, easy to use
- Matched with the TW3205 mini power meter,
it constitutes the smallest optical loss test kit, perfect for field testing
Applications
Maintenance in TelecomMaintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
|
Type
|
TW3110
|
|
|
Wavelengths(nm)
|
1310 or 1550
|
|
|
Emitter Type
|
FP-LD
|
|
|
Ouput Power(dBm)
|
-7~-6
|
|
|
Spectral Width(nm)
|
≤10
|
|
|
Output Stability
|
±0.05dB/15mins; ±0.1dB/ 8hours
|
|
|
Optical Connector
|
FC/PC
|
|
|
Power Supply
|
3pcs 1.5V alkaline batteries
|
|
|
Battery operating time(hour)
|
40
|
|
|
Operating Temperature(℃)
|
-10~+60
|
|
|
Storage Temperature(℃)
|
-25~+70
|
|
|
Dimension(mm)
|
115X60X20
|
|
|
Weight (g)
|
110
|
|
|
Techwin Recommendation
|
|
|
TW3110 Handheld Light Source is designed for mini portfolio with TW3205 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable.
|
|
|
|
MODEL
|
INCLUDES
|
|
|
All TW3110 Models
|
TW3110 Optical Light Source, Alkaline battery, Instruction Manul, Contton Tampon and Protective Holster.
|
