The Perfect Handheld Tester Series

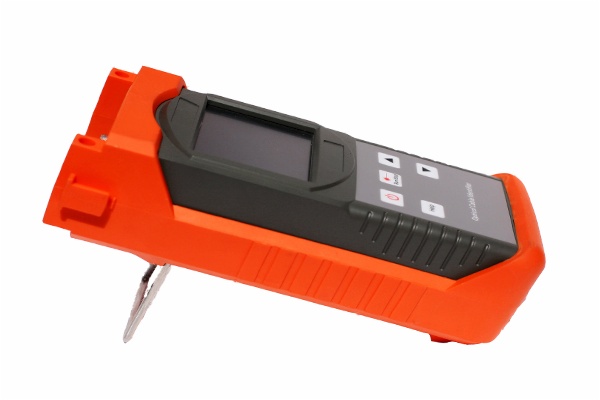

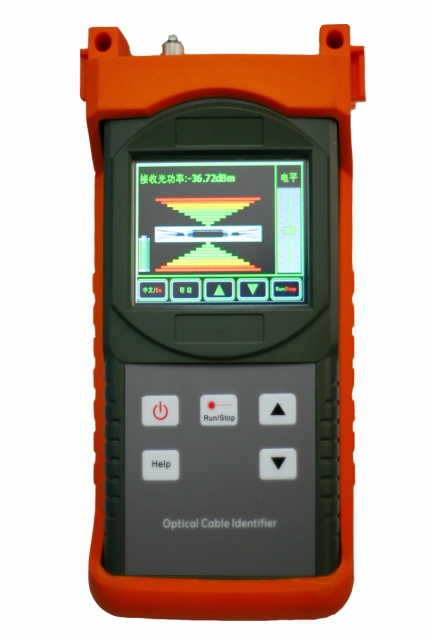

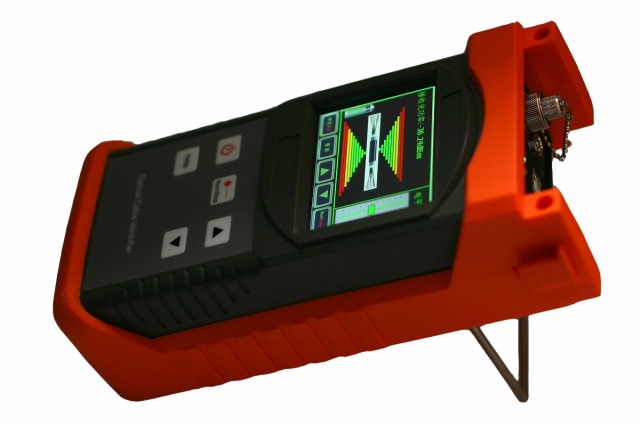

Fiber Cable Identifier TW8000

Fiber Cable Identifier TW8000 series was specifically developed for the Telecommunication engineers and technicians. Fiber Cable Identifier TW8000 with a friendly interface, easy and non-toxic method , can recognize the target fiber cable from others accurately without damage the cable. The devices are applicable to identify a fiber optic cable from other cables which are laid down in conduits, tunnels, manholes ,etc.

Fiber Cable Identifier TW8000 can identify a target fiber optic cable from other cables according to its Light elastic effect. A target cable, which is laid with other cables in conduits, tunnels, manholes, can be identified from other cables accurately based on the optical coherent demodulation because the optical cable percussion vibration signal will be converted to video signals and audio signals. When using the devices, the target cable can be easily identified from other cables as long as engineers gently tap the cables.

Fiber Cable Identifier TW8000 completely replace the previous cable identification methods, which were including cutting, bending, and freezing. These new detection technology devices do not damage the cables. Its powerful applications can greatly reduce the cables’ repair time, reduce project construction and management costs, and greatly improve work efficiency.

Product Characteristics

lightweight handheld device, easy to operate

Strong on-site proficiency, satisfy the needs of telecommunications users

Dozens of kilometers of optic cable remote sensing mechanical vibrations

In a complex environment, The TW8000 Series devices can find target cables through audio or visual signal.

The TW8000 series devices can be automatic optimization of device parameters for different lengths of cable test.

Non-destructive testing,  identification of high accuracy.

Technical Specifications

Wavelength -----------------1550nm

Maximum Optical Output Power----0dBm

Maximum Lengths of Test Cable ----------80Km

Signal to Noise Ratio-------------------30dB

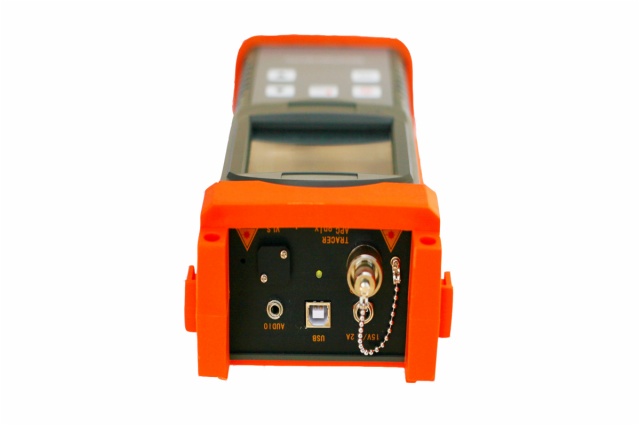

Optical Connector-------------FC/APC

Output Mode  Visual：Vibration Amplitude（Touch Screen LCD)

Audio：Sound（Corresponding to the Perturbation Strength）

Electrical/Physical/Environmental Indicators

Power Supply  9.6V DC/ NI-MH Battery

Power        ≦5W

Volume（H×W×D）  215mm×105mm×65mm

Weight       ≦1.0Kg

Front Display Mode   Touch Screen LCD

Operating Temperature   0～45℃

Storage Temperature    -20～60℃

Note：For the necessity of improvement, the material contained in this document is subject to change without notice.
